Brief introduction of gold trommel screen
Gold trommel screen is mainly used for classifying large and small lumps and separating powdery materials, filtering out the big stones in the raw ore, washing away the mud in the raw ore and so on.
Gold trommel screen is also called gold washing machine, portable gold trommel, gold trommel screen wash plant, alluvial gold wash machine which is the main equipment for gold ore beneficiation process. .
The main function of the trommel screen is to sort and separate raw materials into different sizes. Larger rocks and gravels are usually discharged at the end of the drum, while smaller particles are collected through holes or nets in sluice boxes or other gold recovery equipmen
Gold trommel screen gold washing machine price
Hot sale gold washing machine model: GTS1545 capacity 80-150T/H, GTS1848 capacity 150-200T/H, GTS2055 capacity 200-300T/H.
Gold trommel screens are very suitable for small and medium sized gold mining plant, which is especially used in the process of gravity separation gold mining processing, and it provides a simple, efficient and economic gold washing equipment.
Gold trommel screen performance advantages:
1, Easy to move, convenient installation,
environmental protection, low running costs, etc.
2, Can effectively screen a large quantity of materials, large capacity and into the recovery rate of up to 90%.

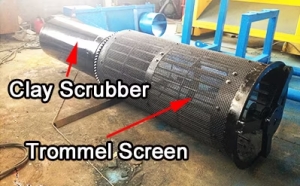

3, Uniquely designed rotating drum, which
helps prevent screen clogging, High throughput and long screen life.
4, Available in different sizes and configurations, with capacities of 1-300t/h, which can be adapted to the varying capacities of small-scale or large-scale mining operations.
5, Widely applicable. Can be used in a variety of mining environments, including alluvial and placer gold mining, as well as hard rock gold mining.
Contact us for more equipment details and price list will be sent to you.
Model | Capacity | Power | Drum Diameter (mm) | Drum Length (mm) | Screen Size (mm) | Dimension (mm) | Weight (Kg) |
(t/h) | (KW) | ||||||
GTS1015 | 1-15 | 4 | 1000 | 1500 | <3-10 | 3000*1400*2145 | 2200 |
GTS1020 | 15-25 | 5.5 | 1000 | 2000 | <3-10 | 3460*1400*2145 | 2800 |
GTS1225 | 25-40 | 7.5 | 1200 | 2500 | <3-10 | 4146*1600*2680 | 4200 |
GTS1530 | 60-80 | 11 | 1500 | 3000 | <3-10 | 4460*1900*2820 | 5100 |
GTS1545 | 80-150 | 15 | 1500 | 4500 | <3-10 | 5960*1900*3080 | 6000 |
GTS1848 | 150-200 | 22 | 1800 | 4800 | <3-10 | 6500*2300*4000 | 7500 |
GTS2055 | 200-300 | 30 | 2000 | 5500 | <3-10 | 7500*2500*4000 | 8600 |
Re: This table only shows partial models, more models information please contact us. |
