Single-cylinder cone crusher generally has the characteristics of high crushing efficiency, simple operation, lower operating cost, energy saving and consumption reduction, green environmental protection, easy maintenance, etc. At the same time, the crushed material has excellent particle size and better quality, so it is quite recognized and favored by users in the industry, especially by metal ore and construction sand and gravel processing plants, becoming one of the sought-after equipment in the industry.

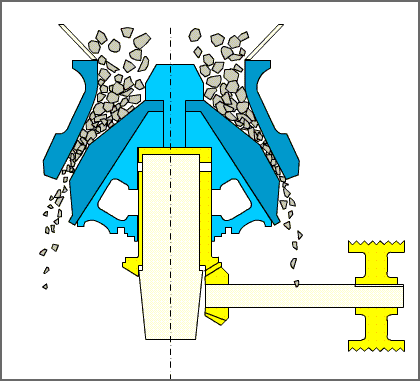

During the working time, the rotation of the motor drives the belt wheel or coupling, the drive shaft and the cone part to make the eccentric shaft do cyclic swinging motion under the axis. After the material enters the crushing cavity from the material mouth, the material is crushed by the mutual impact of the eccentric shaft and the wall of the mill, grinding and rubbing. The hydraulic insurance system can remove the support sleeve and the fixed cone by hydraulic pressure when the machine is over iron failure or bogging down, which plays a good insurance role and greatly reduces the maintenance rate and improves the production efficiency.

Single-cylinder hydraulic cone crusher has the following advantages:

1. PLC+touch screen fully automatic control system ensures safe operation of the equipment

2. Laminated crushing cavity design, uniform product size, cubic shape, low energy consumption

3. All parts can be disassembled and assembled from the top and side, which is convenient for maintenance

4. hydraulic lubrication combined oil station, small size, simple wiring

5. simple structure, high reliability, easy maintenance, low operating cost

Single-cylinder hydraulic cone crusher is suitable for crushing various ores and rocks of medium and medium hardness, such as limestone, iron ore, cobblestone, non-ferrous metal ore, granite, basalt, limestone, quartzite and sandstone, etc.

With the advantages of high efficiency, low energy consumption, high precision and simple operation, single cylinder hydraulic cone crusher is widely used in: sand and gravel quarry, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand and other industries, which can effectively crush hard materials, improve production efficiency and reduce energy consumption, and is one of the indispensable equipment in mining and stone processing industry.

Single-cylinder hydraulic cone crusher consists of motor, hydraulic system, crushing chamber, crushing cavity, hydraulic station, hydraulic cylinder, hydraulic oil tank and other components. The motor is the main power source, the hydraulic system provides hydraulic energy through hydraulic station and hydraulic cylinder, the cone member is installed in the crushing chamber, the crushing chamber consists of hydraulic oil tank, hydraulic cylinder and hydraulic station, when the pressure of the hydraulic oil tank reaches a certain value, the hydraulic cylinder will push the hydraulic station to make the cone member in the crushing chamber produce high speed rotation, so as to achieve the crushing of materials.
