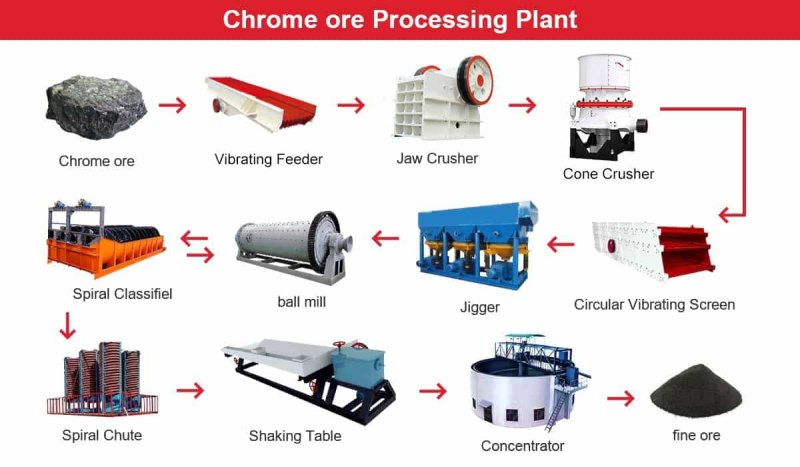

Chrome ore beneficiation processing plant is used to get high grade chrome concentrate by a series of crushing, grinding, extraction, concentration and other processes.

Building complete set of chrome ore beneficiation production line Zoomjo offers the full set of chrome ore processing equipment.

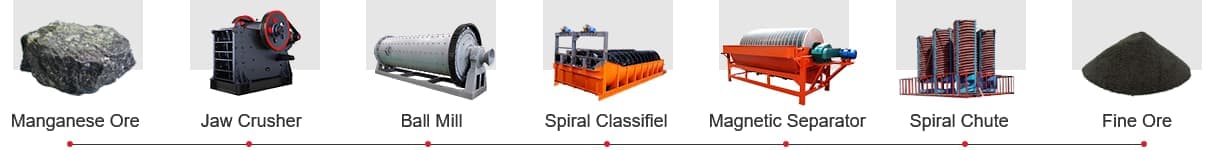

Stage 1: Crushing + Screening Process

With jaw crusher, cone crusher, or impact crusher for chrome ore coarse crushing fine crushing to 0-25mm, the intermediate screening commonly used linear vibrating screen equipment

Stage 2: Grinding Process

Use ball mills or rod mills to grind ore to 0.074-2mm

Stage 3: Beneficiation Process：

Gravity and magnetic separation processes are the main beneficiation methods for chrome ore extraction. Chrome ore gravity separation equipment includes jigger, shaking table, spiral classifier, centrifugal concentrator, and spiral chute. Sometimes weak or strong magnetic separators are used to further improve the grade of chrome concentrate and the ratio of chromium to iron. In addition, flotation and flocculation flotation methods are used for some chrome ores.

Stage 4: Concentrating process:

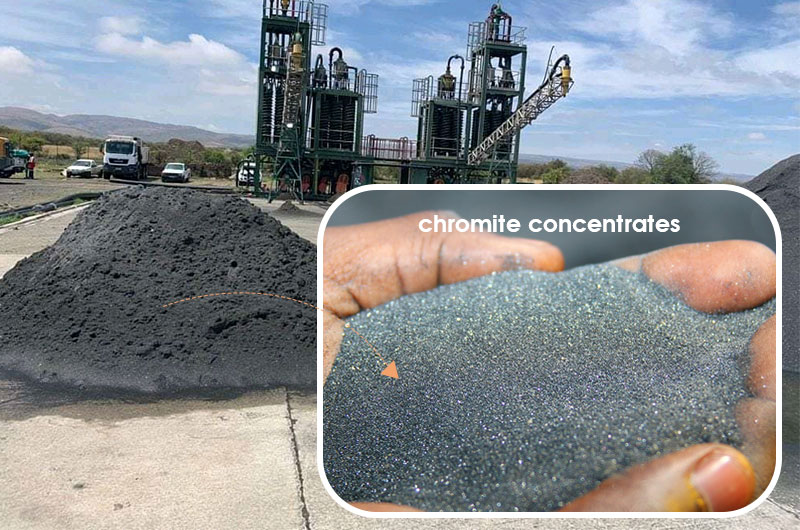

After the above stages of separation of chrome concentrate into the concentrator for the final concentration to get high-grade chrome concentrate.

Gravity separation process

Chrome ore gravity separation process is one of the most widely used processes nowadays, which can effectively separate chromite and chalcopyrite minerals and obtain high grade chrome concentrate. The process is simple in operation, large in capacity, low investment cost, high sorting efficiency and high chrome ore enrichment.

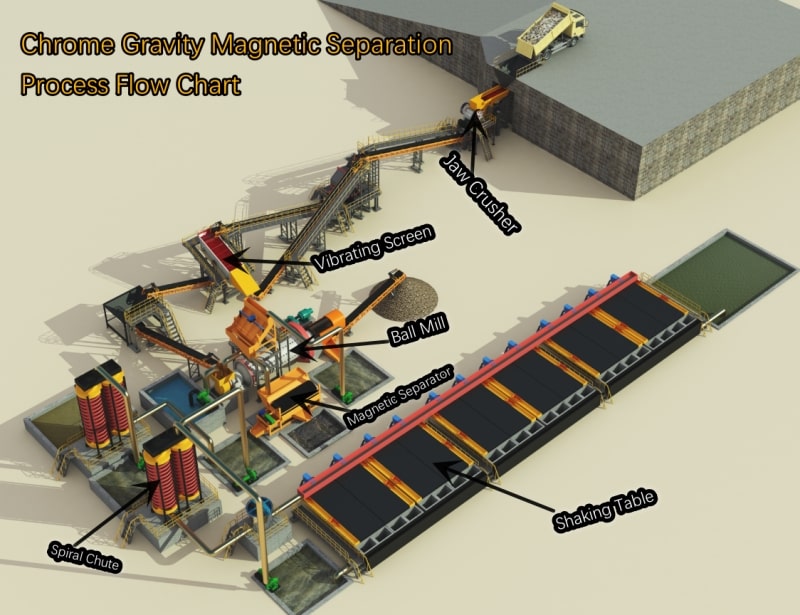

Gravity magnetic separation process

Chrome ore is weakly magnetic, so magnetic separation is also a commonly used process to extract chrome concentrate, but magnetic separation is rarely used alone, generally used in conjunction with gravity separation so that the grade of chrome concentrate can be further improved.

Zoomjo offers free chrome beneficiation processing proposal, planning the scale of your chrome plant, provide full set of chrome ore processing equipment, on-site installation, technical guidance, regular visits after sale, welcome to contact us online to learn more.
